Product Description:
| Model NO. | SL-28-40 | SL-28-60 | SL-28-90 | SL-28-120 | SL-28-160 | SL-25-240 |
| Input Wattage (W) | 30/40/50 | 50/60/80 | 80/100/120 | 120/150 | 150/180/200 | 200/240/320 |
| Installation Pipe Diameter | φ48/60mm | φ48/60mm | φ60mm | φ60mm | φ60mm | φ60mm |
| Installation Height (m) | 3-8 | 4-8 | 6-10 | 8-12 | 8-12 | 8-14 |
| Input Voltage | 90~305Vac |
| Frequency Range | 50/60Hz |
| Power Factor | ≥0.9 |
| Light source | LED |
| Driver | Inventronics |
| Meanwell |
| other brand of driver(upon request) |
| Luminaire efficacy (lm/w) | 130-190 |
| Color Temperature (CCT) | 4000K (3000K/5000K/5700K upon request) |
| Color rendering index (Ra) | ≥70 |
| Diming | Dali (optional) |
| 1-10V (optional) |
| PWM (optional) |
| Smart control management system (upon request) |
Features:

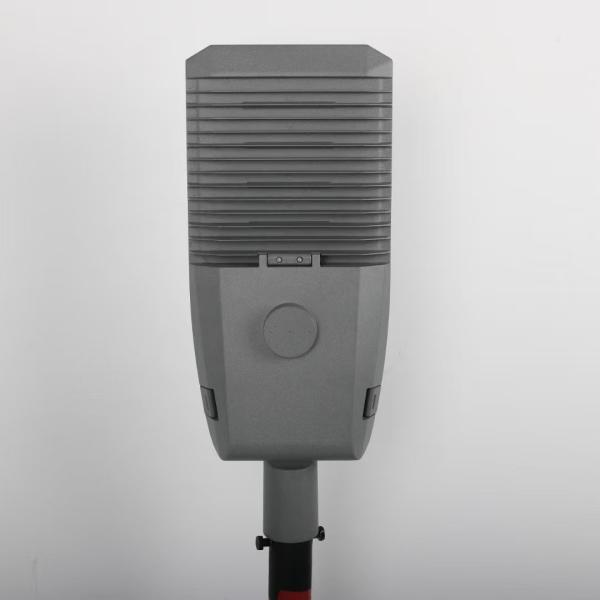

- Product Name: LED Street Light Fixtures
- Color: Customized Ral. No. Such As Gray, Black, White
- Beam Angle: 120°
- Dimension: Customized
- Working Temperature: -40°C-50°C
- CRI: >70
- Projector Lamp Module: Yes
- Aluminium LED Street Lamp: Yes
Technical Parameters:
| Working Temperature | -40°C-50°C |
| Color Temperature | 3000K-6000K |
| Luminous Flux | 3000lm-20000lm |
| Lifespan | >50,000hrs |
| Light Source | LED |
| Warranty | 3-5 Years |
| Power Factor | >0.95 |
| CRI | >70 |
| Dimension | Customized |
| IP Rating | IP65 |
Applications:
These LED street lights are designed to be durable and
long-lasting, with a lifespan of over 50,000 hours. They are also
highly efficient, with a power factor of greater than 0.95, which
means they consume less energy and are more cost-effective than
traditional lighting systems.
The LED Street Light Fixtures are certified with CE, EMC, LVD,
ENEC, and RoHs, ensuring the highest standards of safety, quality,
and performance. They are also IP66 and IK08 rated, making them
resistant to dust, water, and impact, and ideal for use in harsh
outdoor environments.
In terms of customization, the LED Street Light Fixtures are
available in a range of colors, including gray, black, and white,
to match any aesthetic or design requirement. They come with a 3-5
year warranty, providing peace of mind and investment protection
for customers.
The LED Street Light Fixtures are available for purchase in
quantities as low as 1 piece, with prices ranging from US$21.6 to
US$44.6. They are packaged in a single carton box for easy
transportation, and delivery times range from 7 to 35 days,
depending on the destination. Payment terms are TT, and the supply
capacity is up to 50,000 pieces per month.
Overall, Die-casting Man's LED Street Light Fixtures are an
excellent choice for anyone in need of outdoor high power LED
street lighting. Their efficiency, durability, and safety
certifications make them a top choice for public and private
applications alike.
