Product Description:
These LED street lights come in three different power options: 30W,
150W, and 300W, making them suitable for a wide range of public
lighting applications. They are also highly customizable, with a
variety of color options available, including customized Ral. No.
colors such as gray, black, and white. This allows them to blend
seamlessly with their surroundings and provide a sleek and modern
look to any public space.

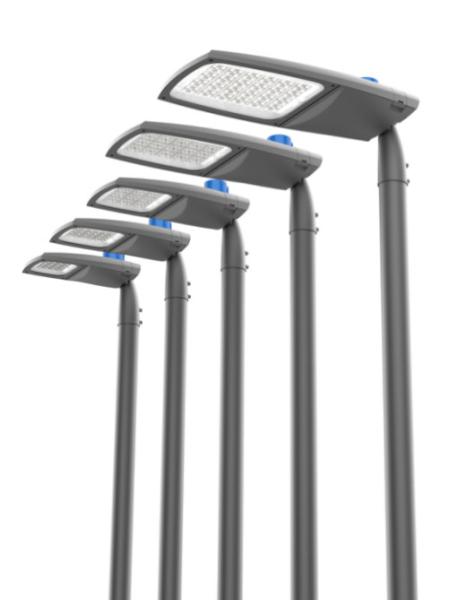

The Outdoor LED Street Lights are constructed from high-quality
die-casting aluminum, which ensures excellent durability and
longevity. This material is resistant to corrosion and weathering,
making it ideal for outdoor use in all types of weather conditions.
Additionally, the die-casting process ensures that these lights are
lightweight and easy to install, reducing the overall cost of
installation and maintenance.
Overall, the Outdoor LED Street Lights are an excellent choice for
anyone looking for a high-quality and cost-effective lighting
solution for public spaces. With their high CRI, efficiency
ratings, and customizable color options, these lights are sure to
provide excellent illumination and add a modern touch to any
outdoor space. So, if you are looking for price led street lights,
public lamp led, or road led light, the Outdoor LED Street Lights
are an excellent choice.
Features:
- Product Name: Outdoor LED Street Lights
- Input Voltage: AC85-265V
- Warranty: 3-5 Years
- Working Temperature: -40℃~50℃
- Efficiency: 130-190lm/w
- Light Source: LED SMD
- Perfect outdoor lamp high power option
- Great public lamp led for streets and roads
- High-quality public lamp led for long-term use
Technical Parameters:
Product Code:
- YASL-35-40(M)
- YASL-35-60(M)
- YASL-35-100(M)
- YASL-35-150(M)
- YASL-35-240(M)
Technical Specifications:
| Product Code | YASL-35-40(M) | YASL-35-60(M) | YASL-35-100(M) | YASL-35-150(M) | YASL-35-240(M) |
| Input Wattage(W) | 30-50 | 50-80 | 60-120 | 120-200 | 200-320 |
| Number of lenses(PCS) | 4 | 6 | 9 | 15 | 24 |
| Product Size(m m) | 563x215x110 | 613x240x110.2 | 654x256x114 | 780x287x114 | 834x341x114 |
| Packing Size(m m) | 610x250x260 | 660x280x260 | 710x300x260 | 810x330x260 | 860x380x260 |
| Net Weight (kgs) | 2.2 | 2.6 | 3.1 | 4 | 5.5 |
| Gross Weight (kgs) | 4.9 | 5.7 | 6.7 | 8.5 | 11.5 |
| Quantity of packing (pcs) | 2 | 2 | 2 | 2 | 2 |
| Installation Height (m) | 3～8 | 4～8 | 6～10 | 8～12 | 8～14 |
| Installation Pipe Diameter | 60 | 60 | 60 | 60 | 60/76 |
| adjustable angle | ±15°Adjustable |
| Materials | Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws |
| Spray colors | Double Grey；Sandy Black；Matt Silver |
| Led Specifications | 3030,5050(Optional) |
| Optical effect | 130～190 lm/w(Optional) |
| Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K(Optional)(Reference:Energy Star) |
| color rendering index | Ra≥70；Ra≥80；Ra≥90(Optional) |
| Optics | TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV(Optional) |
| Driver brand | as your request |
| Input Voltage | AC90～305V |
| Security level | ClassI/ClassII/Class1/Class2(Optional) |
| Frequency Range | 50/60Hz |
| Power Factor | PF≥0.95 |
| Protection | Overcurrent/Short circuit/Over temperature |
| Dimming mode | Time control/0-10V/ Opticalcontrol/Microwaves/DALI(Optional) |
| Lightning protection | 10KV/15KV/20KV(Optional) |
| Working conditions Range | -40 to 45℃,20% to 90%RH |
| Warranty | 5/8 year(Optional) |
| Protection level | IP66;GlassIK08/09/10(Optional),Lamp shell IK08. |
| Certifications | ENEC;CE;CB;IEC;RoHs;TUV;Lightning protection;LM-79;LM-80;IP66 |
Additional Technical Specifications:
- Led Specifications: 3030, 5050 (Optional)
- Optical Effect: 130~190 lm/w (Optional)
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
(Optional) (Reference: Energy Star)
- Color Rendering Index: Ra≥70, Ra≥80, Ra≥90 (Optional)
- Optics: TYPEI, TYPEII, TYPEIII, TYPEV, TYPEIV (Optional)
- Input Voltage: AC90~305V
- Security Level: ClassI / ClassII / Class1 / Class2 (Optional)
- Frequency Range: 50/60Hz
- Power Factor: PF≥0.95
- Protection: Overcurrent / Short circuit / Over temperature
- Dimming Mode: Time control / 0-10V / Opticalcontrol / Microwaves /
DALI (Optional)
- Lightning Protection: 10KV / 15KV / 20KV (Optional)
- Working Conditions Range: -40 to 45℃, 20% to 90% RH
- Warranty: 5/8 years (Optional)
- Protection Level: IP66, GlassIK08/09/10 (Optional), Lamp shell IK08
- Certifications: CE; IEC; RoHs; Lightning protection; LM-79; LM-80;
IP66
Applications:
These smart outdoor lights are suitable for various scenarios such
as urban roads, residential areas, industrial parks, and public
squares. The customized RAL colors, such as gray, black, and white,
are perfect for blending in with any environment.
The YASL-35 LED street lights are manufactured in Ningbo, China,
and have the certification of CE, EMC, LVD, and ENEC, ensuring
their safety and reliability. They operate at an input voltage of
AC85-265V, and have a working temperature range of -40℃~50℃, making
them suitable for any weather.
With a minimum order quantity of just 1PC, and a price range of
US$19.3 - US$42.3, these LED street lights are an affordable yet
effective solution for public lighting. The die-casting aluminum
material used for construction ensures durability and longevity,
making it a cost-effective choice in the long run.
With a CRI of >70, the YASL-35 LED street lights provide
excellent color rendering, making them perfect for outdoor lighting
applications. They are also highly efficient, providing
energy-saving benefits and reducing maintenance costs.
In conclusion, Die-casting Man's YASL-35 Outdoor LED Street Lights
are a reliable, energy-efficient, and cost-effective solution for
public lighting. With a supply ability of 10000PCS/M, and delivery
time of 7-5DAYS, they are a perfect choice for any outdoor lighting
need.
FAQ:
Q1: What is the brand name of this outdoor LED street light?
A1: The brand name of this outdoor LED street light is Die-casting
Man.
Q2: What is the model number of this outdoor LED street light?
A2: The model number of this outdoor LED street light is YASL-35.
Q3: Where is this outdoor LED street light manufactured?
A3: This outdoor LED street light is manufactured in Ningbo, China.
Q4: What certifications does this outdoor LED street light have?
A4: This outdoor LED street light has CE, EMC, LVD, and ENEC
certifications.
Q5: What is the minimum order quantity, price, and delivery time
for this outdoor LED street light?
A5: The minimum order quantity for this outdoor LED street light is
1 piece. The price ranges from US$19.3 to US$42.3. The delivery
time is 7-5 days.
