Product Description:
The ADC12 Aluminum Housing dustproof design ensures that the street
light is protected from dust and other environmental factors that
may cause damage. This makes it a durable and long-lasting option

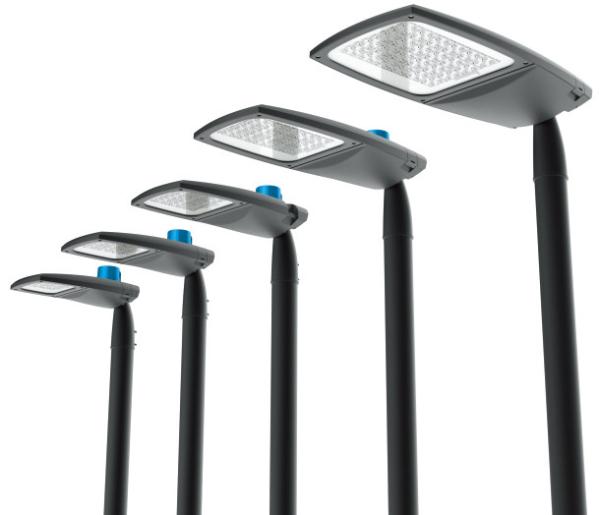

for outdoor lighting. The Die Casting Man Aluminum Streetlamp
Housing comes in various sizes, including 6m, 8m, 10m, and 12m,
which makes it suitable for different applications.
The working temperature of the Aluminum Led Street Light ranges
from -20℃-50℃, which means that it can function well in different
weather conditions. Additionally, the CRI (Color Rendering Index)
of >80 ensures that the colors of the illuminated objects are
accurately represented, making it a great option for outdoor areas
that require good lighting.
This street light is easy to install and maintain, making it a
cost-effective option for outdoor lighting. It is also
energy-efficient and environmentally friendly, which makes it an
ideal option for those looking to reduce their carbon footprint.
| Product Code | YASL-25-40(M) | YASL-25-60(M) | YASL-25-100(M) | YASL-25-150(M) | YASL-25-240(M) |
| Input Wattage(W) | 30-50 | 50-80 | 60-120 | 120-200 | 200-320 |
| Number of lenses(PCS) | 4 | 6 | 9 | 15 | 24 |
| Product Size(m m) | 563x215x110 | 613x240x110.2 | 654x256x114 | 780x287x114 | 834x341x114 |
| Packing Size(m m) | 610x250x260 | 660x280x260 | 710x300x260 | 810x330x260 | 860x380x260 |
| Net Weight (kgs) | 2.2 | 2.6 | 3.1 | 4 | 5.5 |
| Gross Weight (kgs) | 4.9 | 5.7 | 6.7 | 8.5 | 11.5 |
| Quantity of packing (pcs) | 2 | 2 | 2 | 2 | 2 |
| Installation Height (m) | 3～8 | 4～8 | 6～10 | 8～12 | 8～14 |
| Installation Pipe Diameter | 60 | 60 | 60 | 60 | 60/76 |
| adjustable angle | ±15°Adjustable |
| Materials | Housing:ADC12;Cover:Toughened Glass；Screws:304stainless screws |
| Spray colors | Double Grey； Sandy Black； Matt Silver |
| Led brand | LUMILEDS, OSRAM,CREE(Optional) |
| Led Specifications | 3030,5050(Optional) |
| Optical effect | 130～190 lm/w(Optional) |
| Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K(Optional)(Reference:
Energy Star) |
| color rendering index | Ra≥70；Ra≥80；Ra≥90(Optional) |
| Optics | TYPEI,TYPEII,TYPEIII,TYPEV,TYPEIV(Optional) |
| Driver brand | INVENTRONICS |
| Input Voltage | AC90～305V |
| Security level | ClassI/ClassII/Class1/Class2(Optional) |
| Frequency Range | 50/60Hz |
| Power Factor | PF≥0.95 |
| Protection | Overcurrent/Short circuit/Over temperature |
| Dimming mode | Time control/0-10V/ Optical control/Microwaves/DALI(Optional) |
| Lightning protection | 10KV/15KV/20KV(Optional) |
| Working conditions Range | -40 to 45℃,20% to 90%RH |
| Warranty | 5/8 year(Optional) |
| Protection level | IP66;GlassIK08/09/10(Optional),Lamp shell IK08. |
| Certifications | ENEC;CE;CB;IEC;RoHS;TUV;Lightning protection;LM-79;LM-80;IP66 |
Applications:
With a luminous flux of 4000LM and a beam angle of 120°, the
YASL-35 provides ample light coverage for a wide range of outdoor
areas, including streets, parking lots, and stadiums. Its high CRI
of >80 ensures that colors are rendered accurately and vividly,
making it an ideal choice for areas where color accuracy is
important, such as outdoor events and advertising installations.
The YASL-35 is available in three power options: 30W, 150W, and
300W, making it a versatile lighting solution for a range of
outdoor environments. Its energy-saving capabilities make it an
eco-friendly choice for those looking to reduce their energy
consumption and carbon footprint.
This hot sale energy-saving street light is certified by CE, EMC,
LVD, ENEC, and RoHs, ensuring its compliance with international
quality and safety standards. The minimum order quantity is 1PC,
with prices ranging from US$21.6 to US$44.6. Each light is packaged
individually and delivery time ranges from 7-35 days, depending on
the location.
Overall, the Die-casting Man Aluminum Led Street Light is an
excellent choice for those looking for a reliable,
energy-efficient, and high-quality lighting solution for their
outdoor spaces. With its durable construction, powerful
illumination, and eco-friendly features, it is an investment that
is sure to provide long-lasting benefits.
Customization:
We can customize your street lights with a custom design, zhaga
sensor for street lighting 100W, and Die Casting Man Aluminum
Streetlamp Housing for 6m, 8m, 10m, and 12m poles. Our intelligent
Lampadaires Outdoor Led Street Lights have a CRI of >80, IP
Rating of IP66, and can withstand temperatures ranging from
-20℃-50℃. The color temperature of our lights can be adjusted from
3000K-6000K to meet your needs. Additionally, our lights come with
a 3-year warranty.
Support and Services:
The Aluminum Led Street Light is a high-performance and
energy-efficient lighting solution designed for outdoor urban
spaces such as streets, highways, and parking lots. It boasts a
sleek, modern design and is constructed with durable,
corrosion-resistant materials to withstand harsh weather conditions
and resist damage from vandalism.
This product comes equipped with advanced LED technology that
provides bright and uniform lighting while consuming significantly
less energy than traditional lighting systems. The LED light source
also has a long lifespan, reducing maintenance costs and the need
for frequent replacements.
Our technical support and services team is available to assist with
any questions or issues that may arise with the Aluminum Led Street
Light. We offer comprehensive product training, troubleshooting,
and maintenance services to ensure optimal performance and
longevity of the product.
In addition, we provide customization options for the Aluminum Led
Street Light to meet specific project requirements and preferences.
This includes options for color temperature, beam angle, and
dimming capabilities.
