Ip65 80w Cob Led Street Light For Minor Roads

Ask Lasest Price
Brand Name :	Die Casting Man/OEM
Model Number :	YASL-08-80
Certification :	CE, RoHs, ENEC, CB
Price :	Negotiation
Payment Terms :	By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
Supply Ability :	10000PCS/Month.
Delivery Time :	7-30 days base on order quantity

Add to Cart

Product Details
Company Profile

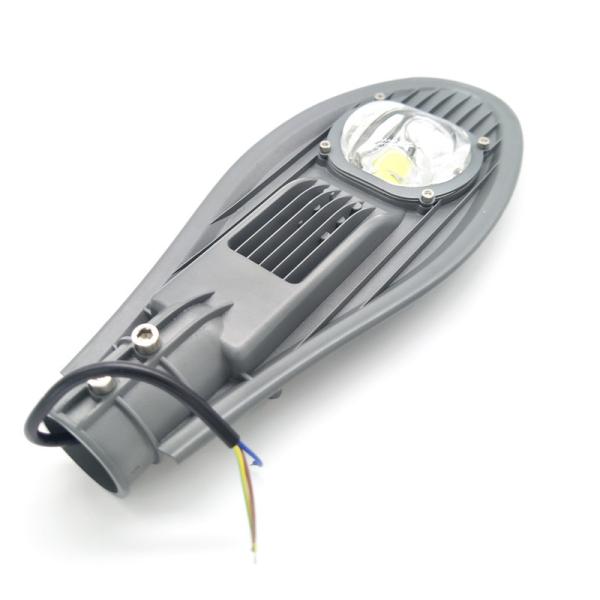

Ip65 80w Cob Led Street Light For Minor Roads

Led Street Light Fixtures 60W COB Lamp White color for Major roads

Quick Detail:

Name	60-80W Cob Led Steet light	Application	Use for Street
Color	black	Feature	New Design
Lamp Luminous Flux(lm)	100LM/W	Certificate	TUV/UL /CE/ROHS

Description:

30W LED streetlight made of High quality Die Casting Aluminum housing +Bridgelux LED +MW Driver

1. The latest version of high power COB Street Light Housing,User-friendly mechanical designing,easy to assemble the led,potic lense and led power supply.

2. State-of-art designing with completed die-casting body as heat sink offer the maximum heat management system,which can hold maximum 1pc of 60W Bridgelus COB led.

3. Patented anti-glare optic lense enable this street light give an maximum 130 degree and 140 degree light spread,with an asymmetrical polar curve.

4. IP65 protection grade.

5.The Led power supply is designed to installed with two U brackets,so any brand of led power supply can be easily installed.

Applications:

Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.

Specifications

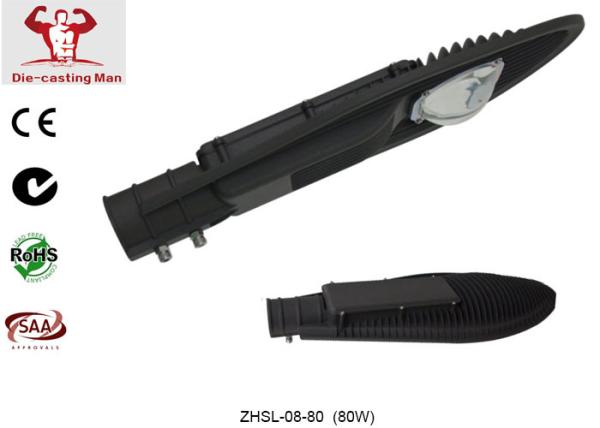

Model Number	ZHSL-08-80
Electrical Specifications	LED QTY	40W-80W x1PC
	TotaLPower consumption	MAX.80W
	Operation Voltage	85-265VAC or 12VDC or 24VDC
	Operating Humidity	10%~90%
	Working Temperature	-30 ~ 50°C
	Power Fact(PF)	>0.95
	Driver Efficiency	> 0.9
Photometric Specifications	LED Luminous Flux	8000 lm - Initial
		7360 lm - Maintain
	Led Luminous Efficiency	>90LM/W
	CRI	Ra ≥ 70
	LED Color	3000k-6500k
Mechanical Specifications	IP Rating	IP65
	Warranty	3Years
	Heat Radiator	die-casting body as heat sink
	Lens	Patented anti-glare optic lense
	Fixture Dimension	620x260x90MM
	Fixture Weight	2.8kgs(6.18lbs)
Packing Information	Packing Type	1unit /ctn
	Packing Dimension	67 x33 x15 cm (26.4” x13” x5.9”)
	Packing Weight	3.5kgs(7.28lbs)

Our service:

your inquiries will be replied in 24 hours in our working days.

3years warranty under normal use.
Professional design provided.
Timely delivery guaranteed.
