    Universal LED Street Light Fixtures 80W Wattage 50 - 60Hz Frequency Range

    Ask Lasest Price
    Brand Name : Die Casting Man/OEM
    Model Number : SL-06-80
    Certification : CE,ROHS, UL,SAA
    Price : Negotiation
    Payment Terms : By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
    Supply Ability : 10000PCS/Month.
    Delivery Time : 7-30 days base on order quantity
    • Product Details
    • Company Profile

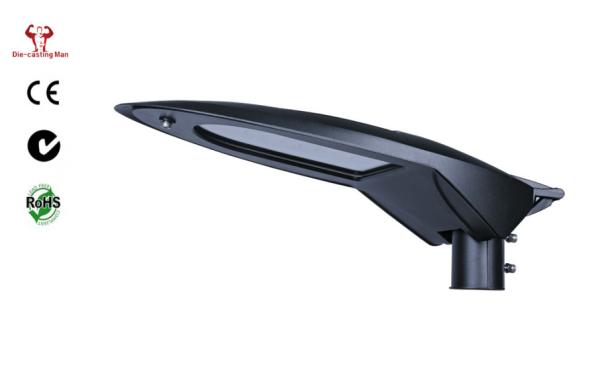

    Universal LED Street Light Fixtures 80W Wattage 50 - 60Hz Frequency Range

    Universal Used Die Casting Aluminum LED Street Light Fixtures For Road & Industrial Area three size IP65 ITEM NO.: SL-06
    Installing Ways: Both Horizontal and Vertical available and adjustable angle-10°to 10° Material:Die casting Aluminum body. Ultra clear tempered glass Product Details
    Product Code
    ZHSL-06-40
    ZHSL-06-80
    Input Wattage
    50W
    100W
    Color Temperature
    3000-6500K
    3000-6500K
    Luminous Flux
    5250-5500lm
    10500-12500lm
    Input Voltage
    AC90-305V
    AC90-305V
    Frequency Range
    50/60Hz
    50/60Hz
    Power Factor
    PF≥0.95
    PF≥0.95
    Color rendering index
    Ra≥70
    Ra≥70
    Temperature of Working Condition
    40-50℃
    -40-50℃
    Humidity of Working Condition
    20%-90%RH
    20%-90%RH
    LED Lifetime
    50000h
    50000h
    Protection Grade
    IP66
    IP66
    Installation Pipe Diameter
    50-60mm
    50-60mm
    Installation Height
    4-8m
    4-8m
    Net Weight
    3.7kg
    6.5kg
    Gross Weight
    4.0kg
    7.0kg
    Packing Size(mm)
    560×265×145
    700×350×160
    Application: Motorways , Major roads, minor roads, roundabouts, crossings and industrial areas. Available housing colors: Black, Grey, White. Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice. Features: - European standard high-pressure aluminium housing material ADC-3 -Patented Ribbon-Free housing technology - Excellent thermal management - Outstanding self-cleaning capability - Patented optics for increased application efficiency - Post-top or side-entry mounted +10° or -10° title - Toughed glass with 4mm thickness, IK08 Impact Resistance; IK09 with 5mm glass optional LED Engine Module LED life time of 100,000 hours at 25℃ ambient temperature Lumiaire efficiency: 110-130lm/w CCT: 4000k (3000K/ 5000K/ 5700K upon request) CRI: >70; >80 (upon request) Operating temperature range: -30 to 45 ℃ Electrical MeanWell / Inventronics optional (other brand of driver upon request) Class I or Class II Input Voltage: 90-305VAC/50-60Hz, 170-305VAC/ 50-60Hz 10KV/20KV SPD Power automatically switch off when opening Dimming: Dali 1-10V PWM AstroDIM for autonomous dimming with five independent levels Smart control management system Options: Photocell Surge protection device (up to 20KV) 0.5m External cable(Other length upon request) Smart control device Motion detection Standards & Certifications: CE, ROHS, ENEC pending, GS pending, IEC pending, LM79 pending, TM21 pending
