YAHB-05-100 Ufo High Bay Light / 100w Aluminum Led Street Light
High Luminous Power
Product Specification
*Item No.:YAHB-05-100
*Input Wattage:100W
*Color Temperature:3000-6500K
*Color Rendering Index:Ra≥70
*Led Lifetime:50000h
*Protection Grade:IP66
*NW/GW:3.5/4.5kg
*Packing Size:29.5*29.5*16.5cm
Product Description
*Nice-looking UFO,very popular in the market,3 types of bean angle
for option.
*LED High Bay
*HB-05 family is a high-performance highbay light available in
three size
*HB-05-100 is the smallest one
*The luminous will be at least 120lm/w
*Product Size:282*282*115mm
*Finish:power coating,general colour will be :double grey/sandy
black/matt silver
Product Material
*Die casting aluminum body
*PC lens
ZHHB-05-100 Family Datasheet
| Product Code | ZHHB-05-100 |
| Input Wattage | 100W |
| Color Temperature | 3000-6500K |
| Luminous Flux | 12000-14000lm |
| Input Voltage | AC90-305V |
| Frequency Range | 50/60Hz |
| Power Factor | PF≥0.95 |
| Color rendering index | Ra≥70 |
| Temperature of working condition | -40-50℃ |
| Humidity of working condition | 20%-90%RH |
| LED Lifetime | 50000h |
| Protection Grade | IP66 |
| Light Angle | 60°/90°/120° |
| Net Weight | 3.5kgs |
| Gross Weight | 4.5kgs |
| Packing Size(mm) | 295*295*165 |
| Product Size(mm) | 282*282*115 |

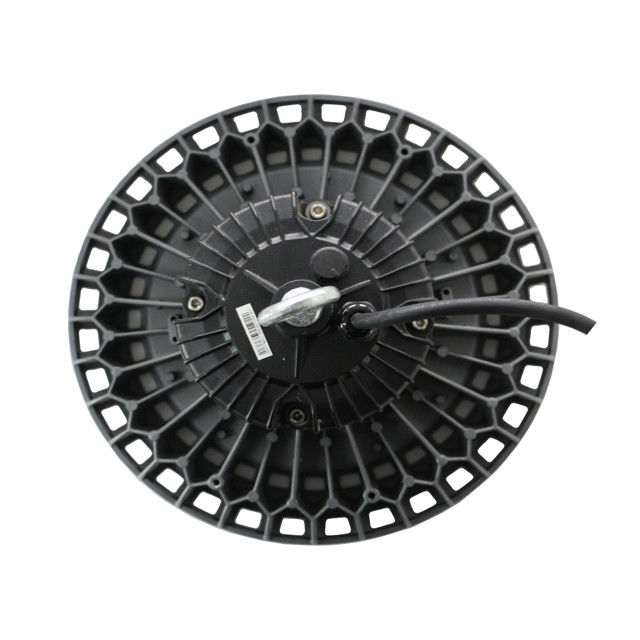

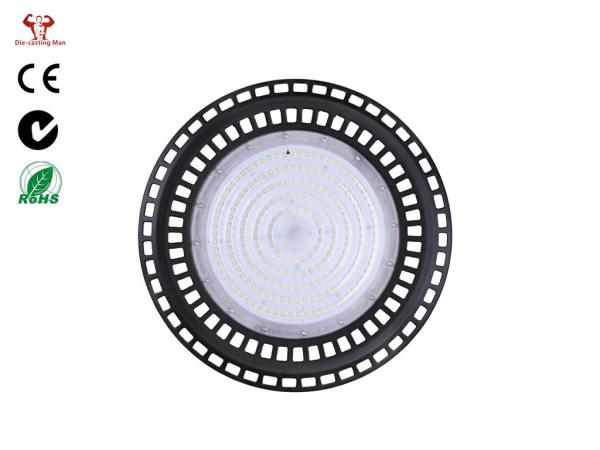

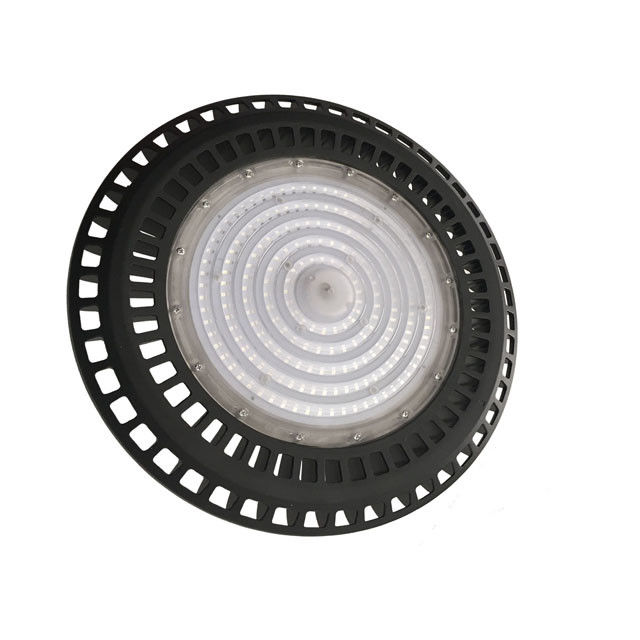

Product Pictures
Equipment
Application
Company profile
* A professional origin die casting manufacturer of led outdoor
light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China
Ninghai Mould City
* Completed lighting production equipment & workshop:
semi-automatic die casting machines, CNC drilling treatment,
Sandblast machine, Powder spraying line, Lamps assembly line, Aging
test line.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt
Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led
street light / led solar street light /led high bay light / led
high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every
year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* 5-7years guarantee
* ODM and OEM service are both available to customers domestic and
overseas.
FAQ
Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular
orders,we prefer 30% in advance,70% against the of B/L.For long
term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most
convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and
receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. If the item was non
standard, we have to consider extra 10-15days for tooling/mould
made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future
orders would not charge again even tooling repair or under
maintance.
Q5. What is your sample policy?
A: We are glad to send ip65 led light samples for your
inspection.Standard samples can be free, but the clients need to
cover the freight cost.
Why choose us
1.Die-casting Man has more than 21 years experience in
manufactuering the outdoor lighting.
2.We have our own die-casting machine,CNC machine,spray
line,assembling line.In this way,will be easy to control the
quality.
3.And we also have our own tooling shop and develop department,can
help customer develop their own products.
