Outdoor COB Led street light shell manufacturers 180W smart city light with sensor for outdoor in smart cities

Luminaire type
A bracket mounted type luminaire for lighting roadways.

Applications
The luminaries can be used for lighting of important roadways, secondary roads, roads in industrial & residential areas etc.

Mounting methods
Suitable for side entry, pole mounting.

Optical system
MOC of optics is borosilicate glass.

LED system
Luminaire luminous flux 16500 lm, luminaire wattage 150W, luminous efficiency of luminaire 110 lm / W, correlated colour temperature ( CCT ) 3000 K-6500K, general colour rendering index ( CRI ) Ra > 80, long life > 50000 burning hours.

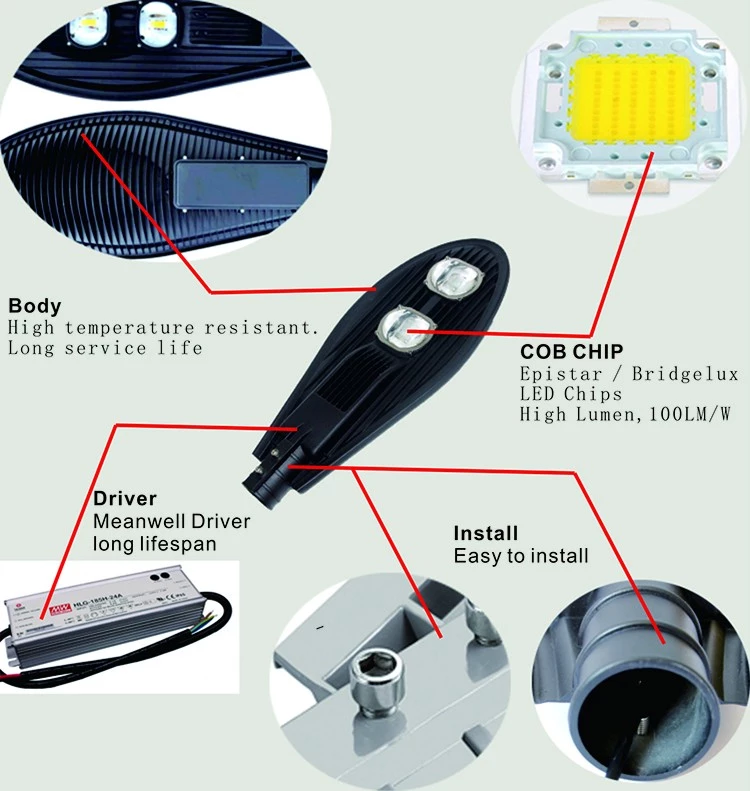

Luminaire body
Luminaire body is made up of high pressure die cast aluminium, with side contour, with closed appearance, highly weather resistant, powder-coated.

LED Engine Module

· LED life time of 50,000hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -40º C to +50º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available

Electrical

· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation

Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available

LED Engine Module

· LED life time of 50,000hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -40º C to +50º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available

Electrical

· Standard AC input of 90-305V,up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation

Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens

Energy Control Options

· Motion detection available

· Photo sensors available

Die-casting Man is a professional Aluminum die casting manufacturer with 23 years of experience.

It is not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

All of the material and finished products will be tested under the ISO9001 quality control system. It has many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

The team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Their new patent design of led street lights is very popular in the market.

In order to meet more and more requirements of customers, it offers ODM and OEM good service. Welcome to contact the sales and visit die-casting man to discuss face to face.

Let’s work together and do our best to make our world full of green light, make our cities more beautiful.
