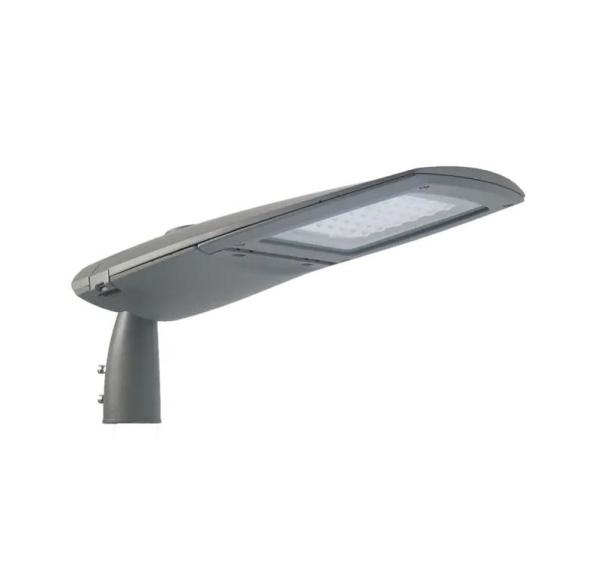

LED street light fixtures YASL-14-120
Product Specification:
This series is a high-performance street lighting available in
three sizes.
The luminaire is manufactured from high pressure die-casting
aluminum.It shall have a led efficacy up to 120 lm/w
and will be capable of producingup to 18000 luminaire lumens at
4000K finished in Grey or black as standard.
| Model | ZHSL-14-40 | ZHSL-14-80 | ZHSL-14-120 |
| Power | 60W Max | 100W Max | 150W Max |
| Color Temperature | 4000K | 4000K | 4000K |
| Efficiency | ＞120LM/W | ＞120LM/W | ＞120LM/W |
| Voltage | AC100-240V | AC100-240V | AC100-240V |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -40-50℃ | -40-50℃ | -40-50℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000 | 50000 | 50000 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ70mm |
| Installation Height | 6-8m | 8-10m | 8-10m |
| Net Weight | 4kgs | 5.4kg | 8.2kg |
| Gross Weight | 4.6kgs | 6.5kg | 10.1kg |
| Packing Size(mm) | 670*320*185 | 780*350*185 | 965*420*195 |
| Efficacy (lm/W) | 130lm/w |
| Power (W) | 30W,50W,60W,80W,100W,120W,150W,200W,220W,240W |
| CCT (K) | 3000K, 4000K, 5000K, 6000K |
| Voltage | AC 100-240 V 50/60 Hz |
| Beam Angle | 145*70° |
| CRI | Ra>70 (Default) / Ra>80 |
| Power Factor(PF) | PF＞0.9 |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Working Environment | -20℃～+50℃,10%～90%RH |
| Lifespan L70 at 25℃ | ＞50,000hrs |
| Holder | 50mm/60mm |
| Body Material | High pressure die-cast aluminum |
| Housing Color | Dark Grey/Black/Light Grey (available on request) |
| Cover Material | UV-resistant Polycarbonate |
| Mounting Type | Side entry or Vertical pole mounted ±15° |
| Dimmable | 1-10V Dimming /Timer Dimming/Dali Dimming |
| Protection Class | Class Ⅰ(Defauit)/Class Ⅱ |
| Standards | CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08 |
| Available on request | NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion
sensor, Knife switch, NTC,OLC, Solar Compatible, DALI Dimming |
| Reasonable tolerance | Watt: ±10%,CCT: ±500K, Lumen efficiency: ±5% |
LED Engine Module
· LED life time of 50,000hours
· High power integrated packaging LED chips, 120° beam spread
available
· Minimum CRI of 70, custom CRI available
· Operating temp: -40º C to +50º C
· No toxic chemicals / ROHS compliant
· Low Tj for long life, low lumen depreciation
· CE certified, meets ROHS standards
· Eligible for Rebates, Design Lights Consortium® Qualified
· 50-80% energy savings
· Manufactured in the China
· Standard distribution is Type V, others distributions available
Electrical
· Standard AC input of 90-305V,up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing
· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat
finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors availabl
