New Design 140lm/W 4000k Ra70 IP66 Die-Casting Aluminium Black
Color Led Street Light 140lm/W 4000k Good quality High Pressure Die casting Aluminium
Waterproof IP66 Led Street Light Item NO.: YASL-25-100M Production Description: - SL-25 series is a high-performance street lighting available in
three sizes. The luminaire is manufactured from high pressure
die-casting aluminum. Technical Datas:
| Product Code | YASL-25-100 | YASL-25-100 | YASL-25-150 | YASL-25-150 | YASL-25-240 | YASL-25-240 |
| Input Wattage | 60W | 100W | 120W | 150W | 200W | 240W |
| Installation Pipe Diameter | φ45/60mm | φ45/60/76mm |
| Luminous Flux | 7800-9000lm | 13000-15000lm | 15600-18000lm | 19500-22500lm | 26000-30000lm | 31200-36000lm |
| Color Temperature | 2700～6500K |
| Input Voltage | AC90～305V |
| Frequency Range | 50/60Hz |
| Power Factor | PF≥0.95 |
| color rendering index | Ra≥70 |
| Temperature of Working Condition | -40～50℃ |
| Humidity of Working Condition | 20%～90%RH |
| LED Lifetime | 50000h |
| Protectin Grade | IP66 |
| Protection level | IK08/09/10 |
| Installation Height | 4-8m | 6-10m | 8-12m | 8-12m | 10-14m | 10-14m |
| Net Weight | 3.8kgs | 3.8kgs | 5.7kgs | 5.7kgs | 7.2kgs | 7.2kgs |
| Gross Weight | 4.0kgs | 4.0kgs | 6.0kgs | 6.0kgs | 7.5kgs | 7.5kgs |
| Packing Size(m m) | 680*270*160 | 680*270*160 | 820*320*160 | 820*320*160 | 920*370*180 | 920*370*180 |

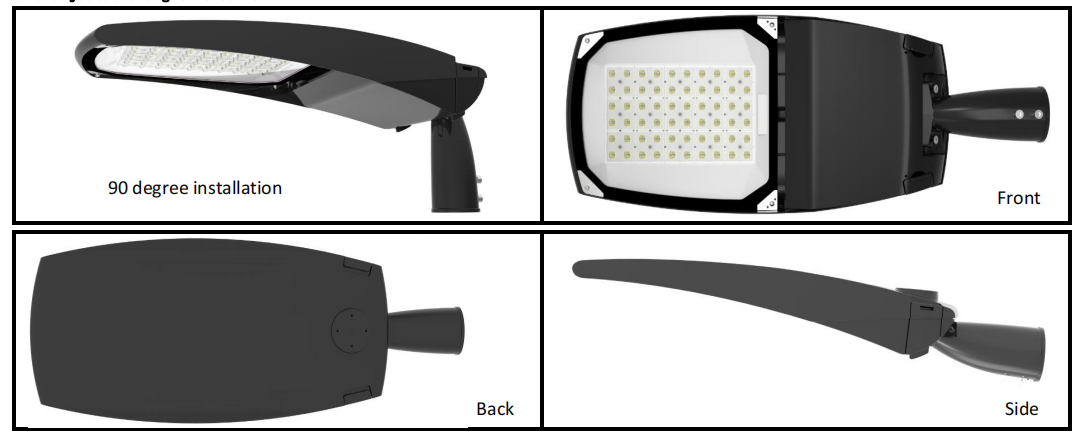

lnstalling Ways: Both Horizontal and Vertical available, and adjustable
angle-15°to+15° Material: Die casting Aluminum body, Ultra clear tempered glass and PC lens
Motorways,Major roads,minor roads,roundabouts,crossing and
industrial areas.
Why choose us
1.Die-casting Man has more than 21 years experience in
manufactuering the outdoor lighting.
2.We have our own die-casting machine,CNC machine,spray
line,assembling line.In this way,will be easy to control the
quality.
3.And we also have our own tooling shop and develop department,can
help customer develop their own products.
Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular
orders,we prefer 30% in advance,70% against the of B/L.For long
term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most
convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and
receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. If the item was non
standard, we have to consider extra 10-15days for tooling/mould
made.
Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future
orders would not charge again even tooling repair or under
maintance.
Q5. What is your sample policy?
A: We are glad to send LED Street light housing samples for your
inspection.Standard samples can be free, but the clients need to
cover the freight cost.
Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q7: How to confirm the quality with us before starting to produce?
1) We can provide LED Street light housing samples and you can
choose one or more, and then we make the quality according to that.
2) Send us your samples, and we will make it according to your
quality.
Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a
satisfied solution for you within three days after we confirm the
problems.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have
legally registered patent, we can pack the goods by your logo after
getting your authorization letters.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply
with TQM,each step is in compliance tothe standards.
