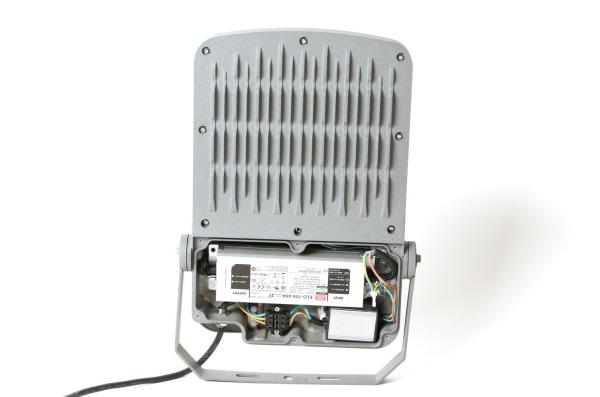

high power led led sports ground floodlights Multifunctional Led Stadium Light Dualpurpose 30W Street LED flood light

Product Specification
LED Power Consumption: 100W-600W
Operating Voltage: AC85-305V 50/60HZ
Power Factor: >0.95;
LED Luminous Efficiency: 130LM/W
Lamp Efficiency: >0.9;
Material: Die-casting aluminum body;
IP Rating: IP65;
Warranty: 3-5 years;
Finishes: White/Black/Gray;

Input voltage	AC 100V-240V
Freqency range	50HZ-60HZ
Power factor	＞0.95
Chip brand	EPISTAR/bridgelux/Philips
Power brand	Philips/MeanWell/inventronics
LED quantity (3030 PLAN)	30W (SLFR03-13)	48PCS	8S6P(16H1)
	40W (SLFR03-13)	48PCS	8S6P(16H1)
	50W (SLFR03-13)	48PCS	8S6P(16H1)
	50W (SLFR03-15)	64PCS	8S8P(16H1)
	60W (SLFR03-15)	96PCS	8S12P(6H1)
	100W (SLFR03-110)	144PCS	8S18P(16H1)
	150W (SLFR03-110)	216PCS	8S27P(6H1)
	200W (SLFR03-120)	256PCS	8S32P(16H1)
	240W (SLFR03-120)	320PCS	8S40P(6H1)
	300W (SLFR03-140)	432PCS	8S54P(16H1)
	400W (SLFR03-140)	576PCS	8S72P(16H1)
	460W (SLFR03-140)	720PCS	8S90P(6H1)
LED quantity (5050 PLAN)	30W (SLFR03-13)	12pcs	2S6P(6H1)
	40W (SLFR03-13)	12pcs	2S6P(6H1)
	50W (SLFR03-13)	12pcs	2S6P(6H1)
	50W (SLFR03-15)	24pcs	2S12P(6H1)
	60W (SLFR03-15)	24pcs	2S12P(6H1)
	100W (SLFR03-110)	54pcs	2S27P(6H1)
	150W (SLFR03-110)	54pcs	2S27P(6H1)
	200W (SLFR03-120)	96pcs	2S48P(6H1)
	240W (SLFR03-120)	96pcs	2S48P(6H1)
	300W (SLFR03-140)	144pcs	2S72P(4H1)
	400W (SLFR03-140)	216pcs	2S108P(6H1)
	460W (SLFR03-140)	216pcs	2S108P(6H1)
16in1 lens Angle type:20*60°/20°/T1/T2/T3/T4/T5/30°/60°/90°/P50 6in1 lens Angle type:30°(5050)/60°/90°/ T2/T3
DRIVER Match with FR03-13	XLG-25/XLG-50 EUC- 35/EUC-060
DRIVER Match with FR03-15	SS-50U/SS-50H/SS-60H/XLG-50/XLG-75/EUC-60
DRIVER Match with FR03-110	SS-100VA/SS-150VA/ EUM-100/EUM-150/XLG-100/XLG-150
DRIVER Match with FR03-120	XLG-200/XLG-240/SS-200VA/EUM-200
DRIVER Match with FR03-140	2PCS XLG-150/2PCS XLG-200/2PCS XLG-240 2 PCS SS-200VA / 2PCS SS-240VA 2PCS EUM-200 /2PCS EUM-240
System light effect	120-130 lm/W
Power efficiency	>90%
Color temperature	2700-6500K
Color rendering index	Ra≥70
Light distribution	Bats airfoil light distribution
Light design	Lens light distribution
LED Junction temperature	≤ 90℃
Working temperature	-30℃ — +50℃
Storage temperature	-30℃ — +50℃
IP Grade	IP66
Working life-span	＞50,000H
Power connection line	Brown		L
	Blue		N
	Yellow/Green		G
Color of lamp shell	Black / Silver/Grey
Beam angle	30/60/90/120/type II/type III/P50
Support tube diameter
Lamp weight : N.W.	(SLFR03-13)		1.71kg
	(SLFR03-15)		2.5kg
	(SLFR03-110)		4.85kg
	(SLFR03-120)		6.65kg
	(SLFR03-140)		13.4kg
	L(MM)	W(MM)	H(MM)
Product size(SLFR03-13)	230	270	50
Product size(SLFR03-15)	320	224	50
Product size(SLFR03-110)	442	291	62
Product size(SLFR03-120)	520	342	65
Product size(SLFR03-140)	620	450	84
SLFR03-13 master carton size (10pcs/ctn)	487	300	295
SLFR03-15 master carton size(6pcs/ctn)	610	375	255
SLFR03-110 master carton size (4pcs/ctn)	475	415	340
SLFR03-120 master carton size (2pcs/ctn)	565	395	233
SLFR03-140 master carton size (1pcs/ctn)	660	480	125

Die-casting Man is a professional Aluminum die casting manufacturer with 23 years of experience.

It is not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

All of the material and finished products will be tested under the ISO9001 quality control system. It has many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

The team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Their new patent design of led street lights is very popular in the market.

In order to meet more and more requirements of customers, it offers ODM and OEM good service. Welcome to contact the sales and visit die-casting man to discuss face to face.

Let’s work together and do our best to make our world full of green light, make our cities more beautiful.
