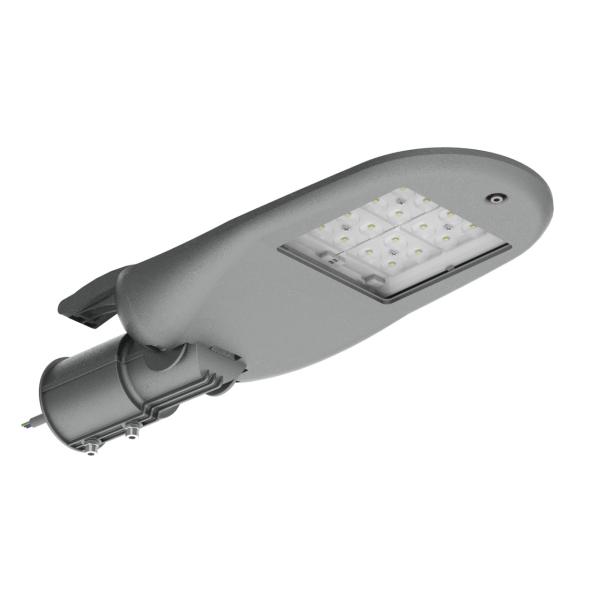

Product Specification

LED Engine Module

· LED life time of 30,000+ hours

· High power integrated packaging LED chips, 120° beam spread available

· Minimum CRI of 70, custom CRI available

· Operating temp: -30º C to +60º C

· No toxic chemicals / ROHS compliant

· Low Tj for long life, low lumen depreciation

· CE certified, meets ROHS standards

· Eligible for Rebates, Design Lights Consortium® Qualified*

· 50-80% energy savings

· Manufactured in the China

· Standard distribution is Type V, others distributions available
Electrical

· Standard AC input of 85-265v VAC, up to 480v available

· EMI filter: 47CFR, part 2, part 15

· Power factor: >0.9

· Total harmonic distortion: <20%

· Surge protection: IEC/EN 61000-4-5 EMC test standard

· Licensed electrician required for installation
Housing

· Rugged, fully sealed, die-cast aluminum housing

· UV-resistant, multi-layer, architectural color, powder coat finish

· High impact, heat resistant, tempered lens
Energy Control Options

· Motion detection available

· Photo sensors available

Feature
.Die casting aluminum body with anti-corrosion treatment.
.Highly polished aluminum reflector.
.Toughened glass with good light transmition rate.
.IP65 Rated for external use
.Equipped with LG/CREE LED chip, generate high luminous flux
.LED emiiter brand can be varied according to requirement.
.High efficient and power factor LED power supply.
.Longlife span over 50000 Hours.
.Obtain a 50-70% Energy Saving compared with Halogen Lamps.

Detail Picture:

Technical Information:

1. Considered initial nominal value of the LED light engine as specified by the LED chip manufacturer. Fixture efficacy and lumen output will depend on things like housing design, lens clarity, environmental characteristics, color temperature and design criteria.

2. Considered the typical initial delivered lumens of the LED light engine. Specific lumens for an application will depend on things like fixture size and geometry, environmental characteristics and color temperature.

3.
Note: Additional wattages and configurations available upon request. Specifications are subject to change without notice.
