Street Light Housing Supplier YASL-15-80
1.Street Light Housing Supplier Introduction
This Street Light Housing Supplier was the latest invention and
high quality with TUV CE ENEC CB IP66 and offer 5 years Warranty.
It was made up with Die Casting Aluminium and Tempered glass.
We devoted ourselves to the lighting industry many years, covering
most of Europe, Middle East, Asia and Africa Market. We are
expecting become your long-term partner in china.
lnstalling Ways:
Both Horizontal and Vertical available and adjustable
angle-5°to+15°
 |  |
| 90 degree installation | Front |
 |  |
| Back | Side |
2.Street Light Housing Supplier Specification
| Product Code | YASL-15-40 | YASL-15-80 | YASL-15-150 |
| Input Wattage | 20W 30W 40W 50W 60W | 80W 100W 120W | 150W 180W 200W 240W |
| Color Temperature | 2700k 300k 4000k 5700k 6500K |
| Luminous Flux | 7800-8400lm | 13000-14000lm | 26000-28000lm |
| Input Voltage | AC90～305V | AC90～305V | AC90～305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of Working Condition | -40～50℃ | -40～50℃ | -40～50℃ |
| Humidity of Working Condition | 20%～90%RH | 20%～90%RH | 20%～90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protectin Grade | IP66 | IP66 | IP66 |
| Protection level | IK08 IK09 |
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm |
| Installation Height | 4-8m | 6-10m | 10-14m |
| Net Weight | 3.5kgs | 5.0kgs | 8.5kgs |
| Gross Weight | 4.0kgs | 5.5kgs | 9.5kgs |
| Packing Size(m m) | 600*240*150 | 710*330*130 | 875*370*130 |
3. LED Street Light ASL-15 Product Description
This series is a high-performance street lighting available in
three sizes.
The lunimaire is manufactured from high pressure die-casting
aluminum.
lt shall have a led efficiency up to 130 lm/w and will be capable
of producing.
Up to 26000 luminaire lumens at 4000K finished in Grey or black as
standard.
IP66 CE ROHS
Photometric
| DH-T1 | DH-T3-M | DH-T4-M | DY-T3-M | GY-T2-M01 | GX-T2-M | GX-T4-L | HX-T2-S |
| DH-T2-L | DH-T3-MA | DH-T5-M | GY-T1-M | GY-T3-M01 | GX-T3-M | HY-T2-M | HX-T2-M |
| DH-T2-M | DH-T3-MB | DY-T2-M | GY-T2-M | GX-T2-S | GX-T4-M | HY-T3-M | HX-T3-M |

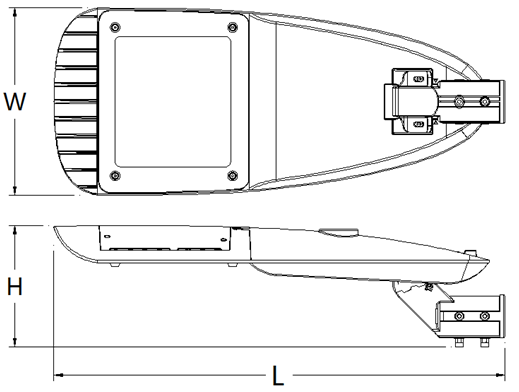

Product Size
| Product Code | YASL-15-40 | YASL-15-80 | YASL-15-150 |
| L(mm) | 563 | 622 | 795 |
| W(mm) | 196 | 292 | 331 |
| H(mm) | 193 | 214 | 214 |
Color Temperature:3000-6500K
Lumen: 4200LM (140LM/W)
Input Voltage: AC90-305V 50/60Hz
Power Factor: PF≥0.95
Color Rendering Index: Ra≥70
Temperature of Working Condition:-40-50°C
Protection Grade:IP66
4.Street Light Housing Supplier Feature And Application
LED Street Lighitng are used in main roads, streets, schools,
gardens, factories, courtyards and so on.

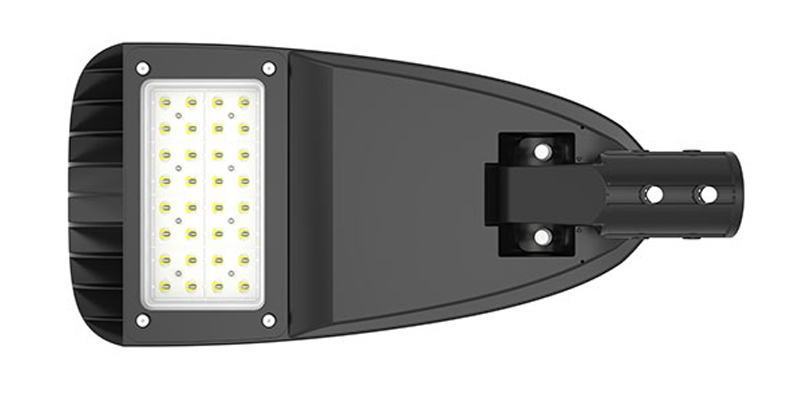

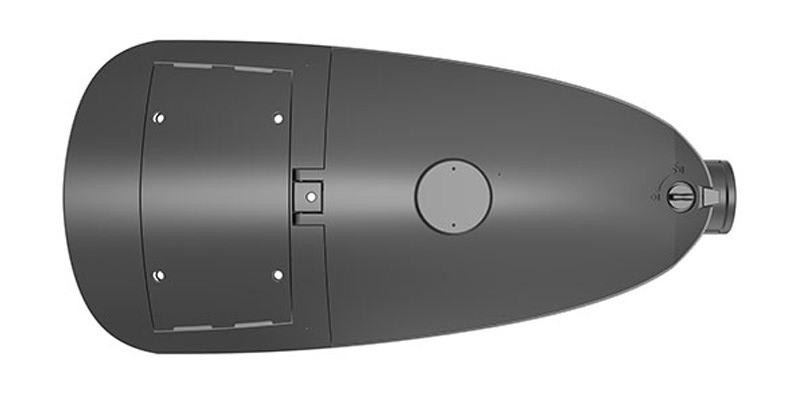

5.Street Light Housing Supplier Details
LED Street Lighting made of Die Casting Aliuminium and Tempered
Glass
6.Street Light Housing Supplier Qualification
TUV CE CB ENEC CERTIFICATE
ISO9001
7.Deliver,Shipping And Serving
Packing by Standard Outter Shipping Carton with Foam
By Sea or By Air both Avilable
Production date Within 25 days once confirming the order
8.FAQ
1,What is the designing?
Products was designing by senior designer with rich working
experience in lighting industry
2,What is the Quality Management System?
All the products was produced under the ISO9001, and was passed by
TUV CE, CB, ENEC and RoHS certificate.
3,What is the Product Warranty time?
All the products could be guaranteed by 5 years.
4,What about the delivery time?
Goods normally will be produced within 25 days on receipt of order
confirmation.
