1.Description:

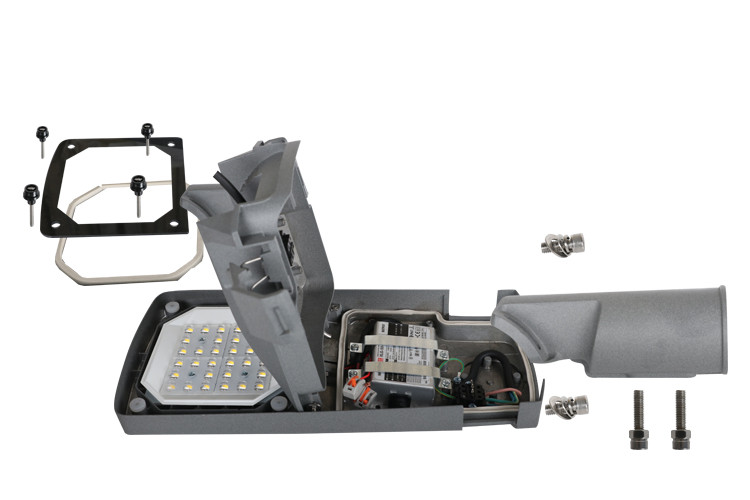

 The series including Die casting housing shell, Frame , rotating
bracket 60mm and 50 mm availble.silicone gasket x 2 pieces.4mm or
5mm tempered glass.gear tray or clips.stainless steel screws and
export safety package

 Model YASL-19 LED lamp is a sample and efficient product that
significantly reduces energy,maintenance costs.  One of the features of this lamp is that it does not need tools to

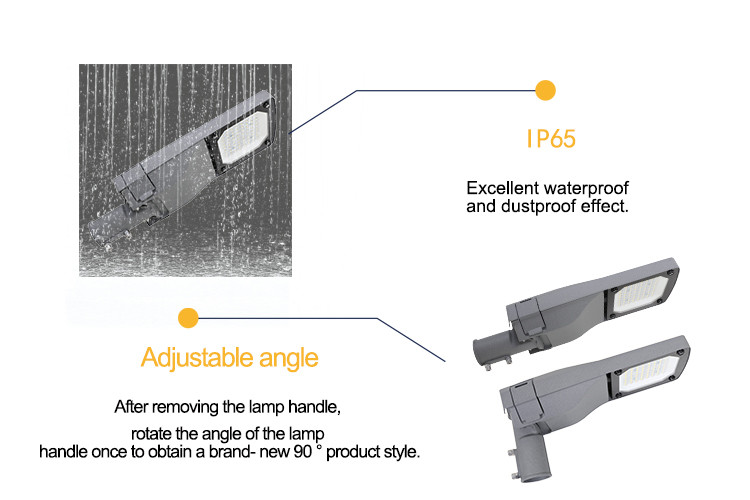

replace parts to upgrade it. Another feature of this lamp is the
ability to install horizontally and vertically. Model YASL-19 LED
light is available in four sizes and eight light distribution
curves from 4500 to 27000 lumen. The YASL-19 LED lamp with an
optical gain of up to 130 lumen per watt has a long life of more
than 100,000 hours

 Product Code

 YASL-19-30

 YASL-19-50

 YASL-19-80

 YASL-19-150

 Input Wattage

 30W 40w

 50W 60w

 80W 100w

 120w 150W 200w

 Color Temperature

 3000-6500K

 3000-6500K

 3000-6500K

 3000-6500K

 Luminous Flux

 3300-3750 lm

 5500-6250 lm

 9200-10400 lm

 17250-19500 lm

 Input Voltage

 AC90-305V

 AC90-305V

 AC90-305V

 AC90-305V

 Frequency Range

 50/60Hz

 50/60Hz

 50/60Hz

 50/60Hz

 Power Factor

 PF≥0.95

 PF≥0.95

 PF≥0.95

 PF≥0.95

 Color rendering index

 Ra≥70

 Ra≥70

 Ra≥70

 Ra≥70

 Temperature of Working Condition

 -40-50℃

 -40-50℃

 -40-50℃

 -40-50℃

 Humidity of Working Condition

 20%-90%RH

 20%-90%RH

 20%-90%RH

 20%-90%RH

 LEDLifetime

 50000h

 50000h

 50000h

 50000h

 Protection Grade

 IP66

 IP66

 IP66

 IP66

 Installation Pipe Diameter

 ⌀50mm 60mm

 ⌀60mm

 ⌀60mm

 ⌀60mm

 Installation Height

 4-6m

 4-6m

 6-10m

 8-12m

 Net Weight

 3.0Kg

 3.7Kg

 6.0Kg

 7.4Kg

 Gross Weight

 3.5Kg

 4.2Kg

 6.5Kg

 8.0Kg

 Packing Size(mm)

 510×236×150

 620×270×155

 670×310×155

 810×340×155

   3.Detail Pictures

Die-casting Man is a professional Aluminum die casting manufacturer with 23 years of experience.

It is not only a die casting factory, but also a factory consist of a completed lighting design team, tooling and mold development workshop, auto-painting finishing lines, assembly lines, and completed lighting products testing.

All of the material and finished products will be tested under the ISO9001 quality control system. It has many advanced equipments, such as semi-automatic die cast machines, CNC treatment, and full sets of completed lights IP testing, lumen test ,aging test, and photometric testing equipments. All those facilities make sure the quality is approved by CE, RoHS, TUV certificate.

The team develops new items every year according to different market’s style. The products rang is including LED street light, LED urban light, LED High bay light and LED tunnel light. Their new patent design of led street lights is very popular in the market.

In order to meet more and more requirements of customers, it offers ODM and OEM good service. Welcome to contact the sales and visit die-casting man to discuss face to face.

Let’s work together and do our best to make our world full of green light, make our cities more beautiful.
