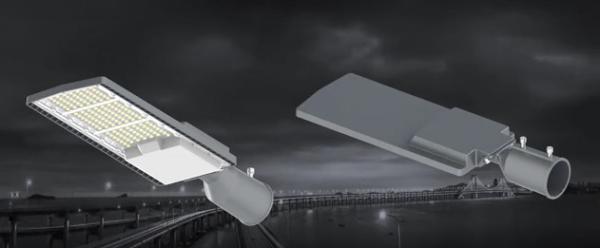

30W 50W 60W 80W 100W 120W 150W
Road Outdoor LED street light housing IP66 Aluminum die-casting
housing
*For this series, we designed total of three sizes models, to deal
with three different wattage requirements,The minimum power can be
30 watts, the maximum can reach 150 watts.
Prodcut Specification
| Material: | Hign pressure die-cast aluminum | Wattage: | 30~150W |
| IP: | 66 | CRI: | ≥70 |
| Color Temperature: | 3000/40000/6500K | Input Voltage: | AC90 - 265V |
| Frequency Range: | 50 - 60Hz | Working Ambient Temperature: | -40℃ - 50℃ |
| Working Ambient Humidity: | 20% - 90%RH | LED Lifetime: | 50000h |
| Product Datasheet |
| Item No. | SL04-30W-S | SL04-50W-S | SL04-6OW-S | SL04-80W-M | SL04-100W-M | SL04-120W-L | SL04-150W-L |
| Power | 30W | 50W | 60W | 80W | 100W | 120W | 150W |
| Lumen Efficiency | 130lm/w | 130lm/w | 130lm/w | 130lm/w | 130lm/w | 130lm/w | 130lm/w |
| Lumen | 3900lm | 6500lm | 7800lm | 10400lm | 13000lm | 15600lm | 19500lm |
| Product Size (mm) | 456x122x13 | 456x122*13 | 456x122*13 | 536x166x13 | 536x166*13 | 618x461x13 | 618x461*13 |
| Electrical Data |
| Working Voltage | AC100-265V 丨 50/60Hz |
| LED: | Lumileds / Epistar / SANAN |
| CCT | 3000K, 4000K, 5000K ,6000K |
| CRI | Ra>70 (standard)/ Ra>80 |
| Driver | local |
| THD | <15% |
| Power Factor(PF) | PF>0.9 |
| IP Rating | IP66 |
| IK Rating | 1K09 |
| Holder | 50mm/B60mm (standard) |
| Body Material | Hign pressure die-cast aluminum |
| Housing Calor | Dark Grey/Black/Light Grey (availabel on request) |
| Cover Material | UV-resistant Polycarbonate |
| Working Environment | -20℃ ~+50℃ , 10%~90%RH |
| Lifespan L70 at 25℃ | > 50,000hrs |
| Mounting Type | Side entry or Vertical pole mounted ±15° |
| Dimmable | 1-10V Dimming /Timer Dimming |
| Protecdion Class | Class I (standard) / Class Ⅱ |
| Standards | CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09 |
| Available on request | NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell.,
Motion sensor, NTC. OLC, DALI Dimming |
| Reasonable tolerance | Watt: ±10%,CCT:±500K, Lumen efficiency: ±5% |
Electrical
· Standard AC input of 90-305V,up to 480v available
· EMI filter: 47CFR, part 2, part 15
· Power factor: >0.9
· Total harmonic distortion: <20%
· Surge protection: IEC/EN 61000-4-5 EMC test standard
· Licensed electrician required for installation
Housing
· Rugged, fully sealed, die-cast aluminum housing
· UV-resistant, multi-layer, architectural color, powder coat
finish
· High impact, heat resistant, tempered lens
Energy Control Options
· Motion detection available
· Photo sensors available
Is there anything else you want to know about this lamp?
1. Q:What is the waterproof rating?
A: It’s can pass IP66
2. Q:How many years of warranty do you promise?
A: We guarantee the housing for 5 years.for the whole lamp,The
warranty of electrical parts is depends on the warranty time of
different driver brand.
3. Q:What is the grade of your powder coating?
A: Normal is C2 grade,but If the customer has special request,such
as used at the seaside,in this case,we can use phosphating with
Akzo powder to reach higher levels,like C3,C4.
4. Q:What's the packing you use?
A: Our packing is PE bags with foam and carton box,we will ensure
it safe.
5. Q:What is your usual lead time?
A: 25 days for regular products, 10 days extra for special
requirements.
