    Waterproof Suspension Hanging Light For Middle Road Centenary Street Lighting

    Ask Lasest Price
    Brand Name : Die Casting Man
    Model Number : UB-09-90B-120W
    Certification : CE, ROHS, ENEC
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100000 pcs per month
    Delivery Time : 5-7days for sampling, 30-35days for mass production
    • Product Details
    • Company Profile

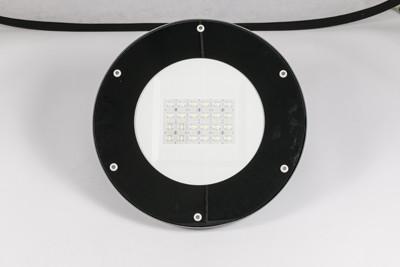

    Waterproof Suspension Hanging Light For Middle Road Centenary Street Lighting

    Suspended urban and street lighting ensure high visibility lighting fixtures


    Product Description


    This 30-120W LED garden light Die-casting body waterproof lighting fixtures.

    2021 new design with CE IP66 5years warranty,it was made up with die-casting

    body+three-arms+die-casting aluninum hear sink on the top.


    Product Material


    *Die casting aluminum body

    *Ultra clear tempered glass and PC lens


    Product CodeYAUB-09-90B
    Input Wattage30W55W80W100W120W
    Color Temperature27006500K27006500K27006500K27006500K27006500K
    Luminous Flux42004500lm7700-8250lm11200-12000lm13000-15000lm15000-17400lm
    Input VoltageAC90305VAC90305VAC90305VAC90305VAC90305V
    Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
    Power FactorPF≥0.95PF≥0.95PF≥0.95PF≥0.95PF≥0.95
    color rendering indexRa≥70Ra≥70Ra≥70Ra≥70Ra≥70
    Temperature of Working Condition-4050-4050-4050-4050-4050
    Humidity of Working Condition20%90%RH20%90%RH20%90%RH20%90%RH20%90%RH
    LED Lifetime50000h50000h50000h50000h50000h
    Protectin GradeIP66IP66IP66IP66IP66
    Protection levelIK08/09/10IK08/09/10IK08/09/10IK08/09/10IK08/09/10
    Installation Pipe Diameterφ10-18mmφ10-18mmφ10-18mmφ10-18mmφ10-18mm
    Installation Height3-4m3-4m4-5m4-5m4-6m
    Net Weight6.0kgs6.0kgs6.0kgs6.0kgs6.0kgs
    Gross Weight6.5kgs6.5kgs6.5kgs6.5kgs6.5kgs
    Product Size(m m)545*465*715545*490*713545*490*713545*490*713545*490*713
    Packing Size(m m)550*520*245550*520*245550*520*245550*520*245550*520*245

    Photometric


    DH-T1DH-T3-MDH-T4-MDY-T3-MGY-T2-M01GX-T2-MGX-T4-LHX-T2-S
    DH-T2-LDH-T3-MADH-T5-MGY-T1-MGY-T3-M01GX-T3-MHY-T2-MHX-T2-M
    DH-T2-MDH-T3-MBDY-T2-MGY-T2-MGX-T2-SGX-T4-MHY-T3-MHX-T3-M

    OpticTS: Symmetrical optic for centre road lighting.
    Colour temperature: 4000K (3000K optional) | CRI ≥ 70
    Photobiological safety class: EXEMPT GROUP
    LED source efficiency: 168 lm/W @ 525mA, Tj=85°C, 4000K
    Insulation classII, I
    Protection degreeIP66 | IK08 total
    Tilt angleAdjustable inclination and orientation
    LED modulesRemovable / Replaceable
    DimensionsØ626x240mm - See the drawing
    Weight16 kg
    Exposed surfaceSide: 0.9m2 - Top: 0.31m2

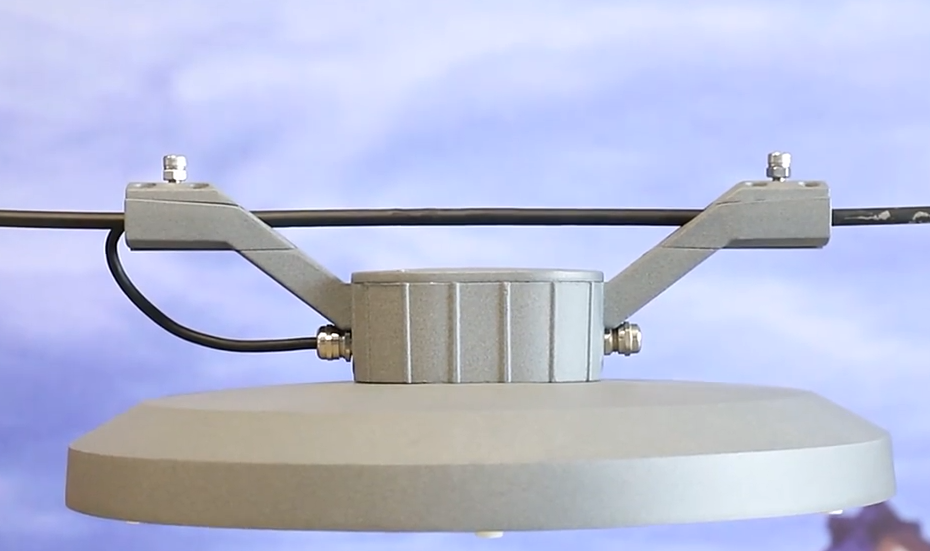

    MountingOn cable Ø6÷Ø12mm
    Gear trayRemovable
    Operating temperature-40°C / +50°C (525mA), -40°C / +35°C (700mA)
    Storage temperature-40°C / +80°C
    Main reference standardsEN 60598-1, EN 60598-2-3, EN 62471,
    EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
    ELECTRICAL CHARACTERISTICS
    Rated voltage220÷240V 50/60Hz
    Power factor>0,9 (at full load)
    On-load switchIncluded, with integrated cable clamp.
    Mains connectionConnector for cables max section 4mm2
    Surge protectionUp to 10kV | With SPD (optional) 10kV / 10kV CM/DM
    SPD (optional)10kV-10kA, type II, with LED signal and thermo fuse to disconnect
    load at the end of life.
    F: Fixed power not dimmable.
    Control system(options)DA: Automatic dimming (virtual midnight) with default profile.
    DAC: Custom DA profile.
    FLC: Constant light flux.
    DALI: Digital dimming interface DALI.
    Optical unit lifetime>100.000hr L90B10
    (Tq=25°C, 700mA)>100.000hr L90, TM-21
    MATERIALS
    FixingStainless steel AISI 316L
    BodySpun aluminum powder painted.
    HeatsinkExtruded aluminum.
    Lower frameDie-cast aluminum UNI EN 1706 powder painted.
    Optic99.85% aluminum with a surface finish in 99.95% with vacuum-sealed
    deposition. Aluminum grade class A+ (DIN EN 16268)
    ScreenFlat tempered glass, 4mm thickness high transparency.
    Cable glandPlastic M20x1.5 - IP68
    GasketEPDM
    ColourGray, light gray, double gray, black, white, golden
