120lm/W 40W Famous Brand Driver Die Casting Aluminum Waterproof Led
Street Light 120lm/W 40W Die Casting Aluminum Waterproof Led Street Light Item NO.: YASL-11 Production Description: - SL-11 series is a high-performance street lighting available in
three sizes. The luminaire is manufactured from high pressure
die-casting aluminum. - It shall have a led efficiency up to 120
lm/w and will be capable of producing up to 18000 luminaire lumens
at 4000K finished in Grey or black as standard. Technical Datas:
| Item NO. | ZHSL-11-30 | ZHSL-11-50 | ZHSL-11-120 |
| | Warm White | Neutral White | Day Light |
| LED Lifetime | 50000h | 50000h | 50000h |
| Color Temperature | 3000K | 4000-4500K | 6000-6500K |
| Luminous Flux Output | 3000LM | 5000LM | 12000LM |
| LED Quantity (with LG Led) | 24pcs | 24pcs | 60pcs |
| Power Factor (with Inventronics Power Supply) | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Input Voltage ((with Inventronics Power Supply) | AC 100-240V | AC 100-240V | AC 100-240V |
| Color Rendering Index (CRI) | Ra>70 | Ra>70 | Ra>70 |
| International Protection Marking (IP code) | IP65 | IP65 | IP65 |
| Impact resistance (glass) (IK code) | IK08 | IK08 | IK08 |
| Frecquency Range (with Inventronics Power Supply) | 50/60Hz | 50/60Hz | 50/60Hz |
| Temperature of Working Condition | -40℃ - 50℃ | -40℃ - 50℃ | -40℃ - 50℃ |
| Surge protection to preserve the luminaire from voltage spikes (in
kV) | 10kV | 10kV | 10kV
|
Drawing picture:

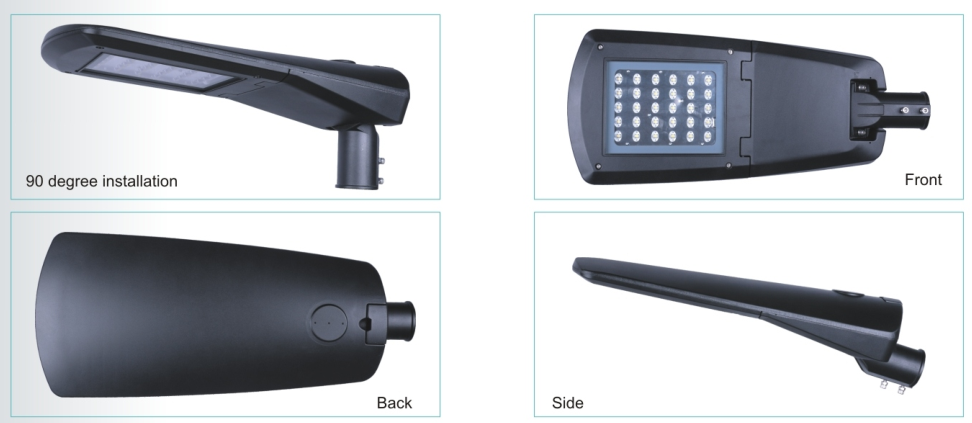

lnstalling Ways: Both Horizontal and Vertical available, and adjustable
angle-10°to+10° Material: Die casting aluminum body, Ultra clear tempered glass and PC lens
Photometric Data
Company profile
* A professional origin die casting manufacturer of led outdoor
light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China
Ninghai Mould City
* Completed lighting production equipment & workshop:
semi-automatic die casting machines, CNC drilling treatment,
Sandblast machine, Powder spraying line, Lamps assembly line, Aging
test line.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt
Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led
street light / led solar street light /led high bay light / led
high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every
year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* 5-7years guarantee
* ODM and OEM service are both available to customers domestic and
overseas.
Why choose us
1. Die-casting Man has more than 21 years experience in
manufactuering the outdoor lighting.
2. We have our own die-casting machine,CNC machine,spray
line,assembling line.In this way,will be easy to control the
quality.
3. And we also have our own tooling shop and develop department,can
help customer develop their own products.
