120lm/W IP66 Ik08 Die-casting Aluminum Famous Brand driver Led
Street Light Item NO.: YASL-13 Production Description: - SL-13 series is a high-performance street lighting available in
three sizes. The luminaire is made from high pressure die-casting
aluminum. - It shall have a led efficiency up to 120 lm/w and will
be capable of producing up to 18000 luminaire lumens at 4000K
finished in Grey or black as standard. Technical Datas:
| Product Code | ZHSL-13-50 | ZHSL-13-100 | ZHSL-13-150 |
| Input Wattage | 50W | 100W | 150W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 5500-6250lm | 9200-10400lm | 17250-19500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-8m | 6-10m | 8-12m |
| Net Weight | 3.9kgs | 5.4kgs | 9.8kgs |
| Gross Weight | 4.6kgs | 6.5kgs | 11.5kgs |
| Packing Size(mm) | 695*285*130 | 790*340*135 | 970*415*180 |
| Product Size(mm) | 641*241*114 | 738*289*114 | 923*360*150 |

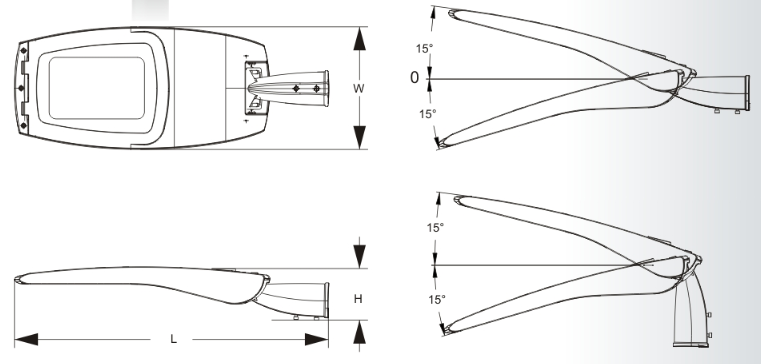

Drawing picture:
lnstalling Ways: Both Horizontal and Vertical available, and adjustable
angle-15°to+15°
Company profile
* A professional origin die casting manufacturer of led outdoor
light.
* 10000+ square meter plant, 120 employees, located in China
Ninghai Mould City
* Full facilities of outdoor lighting testing for IP/ IK/ Salt
Spray / Thermal / IES files, etc.
* 6 elite designers & engineers, developing 8-12 new styles every
year.
* CE, RoHS, TUV certificates.
* ODM and OEM service are both available to customers domestic and
overseas.
