200w Reflector Outdoor Garden Lamp Die Casting Aluminium LED Motion Sensor

NingBo Die-Casting Man Technology Co.,ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 200w Reflector Outdoor Garden Lamp Die Casting Aluminium LED Motion Sensor from wholesalers

    Buy cheap 200w Reflector Outdoor Garden Lamp Die Casting Aluminium LED Motion Sensor from wholesalers
    • Buy cheap 200w Reflector Outdoor Garden Lamp Die Casting Aluminium LED Motion Sensor from wholesalers
    • Buy cheap 200w Reflector Outdoor Garden Lamp Die Casting Aluminium LED Motion Sensor from wholesalers

    200w Reflector Outdoor Garden Lamp Die Casting Aluminium LED Motion Sensor

    Ask Lasest Price
    Brand Name : Die casting man
    Model Number : YASL-27-200MK
    Certification : CE, RoHs, ENEC, CB
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000PCS/Month.
    Delivery Time : 35days after deposit
    • Product Details
    • Company Profile

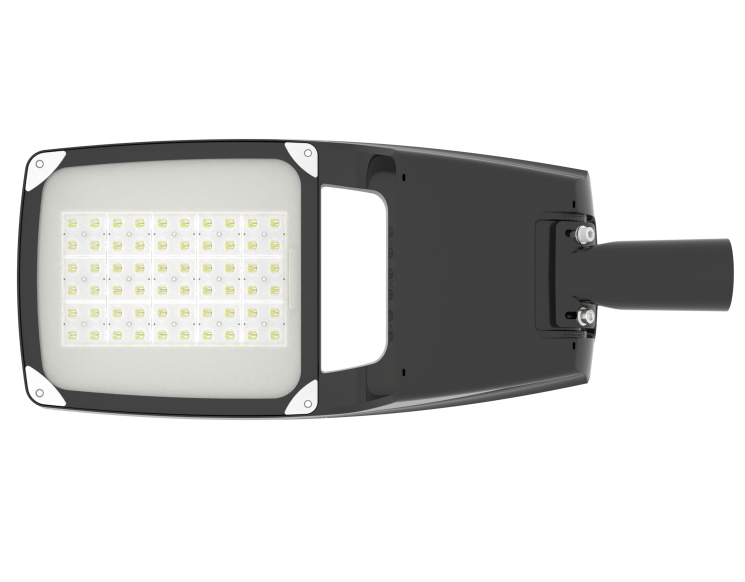

    200w Reflector Outdoor Garden Lamp Die Casting Aluminium LED Motion Sensor

    Led Garden Lamp 200w Reflector Outdoor Lighting Waterproof Ip65 Die Casting Aluminium Led Motion Sensor Outdoor Light

    First of all, please allow me to introduce our company Ningbo die-casting man to you,
    Die-casting Man is one of the lighting manufacturers with design ,development and production. We understand that lighting technology has to be practical,so we always design and develop with our customers needs in mind.


    Testing Machine

    Certification


    Products Description

    Product Datasheet
    Item No.YASL-27-200MYASL-27-200MYASL-27-200M
    Power150W200W240W
    Lumen Efficiency160lm/w160lm/w160lm/w
    Lumen24000lm32000lm38400lm
    Product Size (mm)783x320x124783x320x124783x320x124
    Electrical Data
    Working VoltageAC100-265V 50/60Hz
    LED:Lumileds / Epistar / SANAN
    CCT3000K, 4000K, 5000K ,6000K
    CRIRa>70 (standard)/ Ra>80
    Driverlocal
    THD<15%
    Power Factor(PF)PF>0.9
    IP RatingIP66
    IK Rating1K09
    Holder50mm/B60mm (standard)
    Body MaterialHign pressure die-cast aluminum
    Housing CalorDark Grey/Black/Light Grey (availabel on request)
    Cover MaterialUV-resistant Polycarbonate
    Working Environment-20 ~+50 , 10%~90%RH
    Lifespan L70 at 25> 50,000hrs
    Mounting TypeSide entry or Vertical pole mounted ±15°
    Dimmable1-10V Dimming /Timer Dimming
    Protecdion ClassClass I (standard) / Class
    StandardsCE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
    Available on requestNEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
    Reasonable toleranceWatt: ±10%,CCT:±500K, Lumen efficiency: ±5%


    Is there anything else you want to know about this lamp?

    Questions
    1.Q:What’s the warranty for your products
    A: Normal produts in 5 years.Also can according your requirment
    2.Q:What’s the delivery time
    A:5days for samples,25days for housing,30days for finished lamp
    3.Q:Can I put my logo on the products.
    A:Of couse you can.Print the logo or make a mold engrave the logo on the products both ok for us.But engrave the logo should according the MOQ,usually need more than 1000pcs.
    4.Q:Which port did you in.
    A:We are in Ningbo port.And Shanghai port is ok for us.But other port is too far for us.We are no very suggest you choose other port,it will increase the cost.
    5.Q:Which brand’s drvier did you use?
    A:For our standard products,we will use with inventronic.But you also can choose philps .meanwell and osram.It’s depen on your like.If you want to the lower cost,their also have some Chinese brand for your choose,such as Moso ,sosen
    6.Q:How about the chips.Which one did you use?
    A:In normal we will use with philip 3030,you can choose the CCT RA by yourself.Ofcouse 5050 is also ok for us.We can design it according your requirement.
    7.Q:How about the lens,is there any photometric for choose.
    A:Yes we have many photometrics for each items for your choose,you can see it during our catalogue.The size which we use for the lens is 50*50mm,I think many customer will lke this one.And we also can use the ledil lens,but it will be take a little longer time for the delivery time.
    8.Q:If I want to use with neam socket,is ok for this products?
    A:Yes of couse.You see,there have a base ,we leave this to make nama hole for all the items for this family.And it also can make zhaga hole.You can choose it by yourself.
    9.Q:What’s the protection grade for your products
    A:IP66 IK08
    10.Q:What’s grade for your powder coating
    A:Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.We can make the different levels according your requirment.
