50 Watt Tempered Glass Cover Led Street Light Die Cast Aluminium Body

NingBo Die-Casting Man Technology Co.,ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 50 Watt Tempered Glass Cover Led Street Light Die Cast Aluminium Body from wholesalers

    Buy cheap 50 Watt Tempered Glass Cover Led Street Light Die Cast Aluminium Body from wholesalers
    • Buy cheap 50 Watt Tempered Glass Cover Led Street Light Die Cast Aluminium Body from wholesalers
    • Buy cheap 50 Watt Tempered Glass Cover Led Street Light Die Cast Aluminium Body from wholesalers

    50 Watt Tempered Glass Cover Led Street Light Die Cast Aluminium Body

    Ask Lasest Price
    Brand Name : Die Casting Man/OEM
    Model Number : ZHSL-08-50
    Certification : CE,ROHS, UL,SAA
    Price : Negotiation
    Payment Terms : By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union
    Supply Ability : 10000PCS/Month.
    Delivery Time : 7-30 days base on order quantity
    • Product Details
    • Company Profile

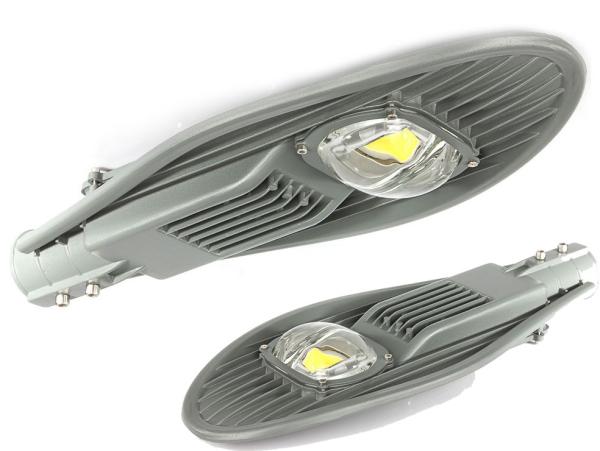

    50 Watt Tempered Glass Cover Led Street Light Die Cast Aluminium Body

    Aluminum IP65 High Power Led Street Light 60 Watt Natural White

    ZHSL-08-80

    It has 30W, 50W, 80W,120W,180W from 5 bodies.

    Installing Ways: Both Horizontal and Vertical available and adjustable angle-10°to 10°
    Material:Die casting Aluminum body.
    160° 140° is avaiable.

    Product Details

    Product CodeZHSL-08-30ZHSL-08-50ZHSL-08-80ZHSL-08-120ZHSL-08-180
    Input Wattage30W50W80W120W180W
    Color Temperature3000-6500K3000-6500K3000-6500K3000-6500K3000-6500K
    Luminous Flux3150-3600lm5250-6000 lm8400-9600 lm12600-14400lm18900-21600lm
    Input VoltageAC90-305VAC90-305VAC90-305VAC90-305VAC90-305V
    Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
    Power FactorPF≥0.95PF≥0.95PF≥0.95PF≥0.95PF≥0.95
    Color rendering indexRa≥70Ra≥70Ra≥70Ra≥70Ra≥70
    Temperature of Working Condition-40-50℃-40-50℃-40-50℃-40-50℃-40-50℃
    Humidity of Working Condition20%-90%RH20%-90%RH20%-90%RH20%-90%RH20%-90%RH
    LED Lifetime50000h50000h50000h50000h50000h
    Protection GradeIP66IP66IP66IP66IP66
    Installation Pipe Diameterф40mmф50mmф60mmф60mmф70mm
    Installation Height4-7m5-8m6-10m8-12m10-14m
    Net Weight2.0kg2.7kg3.7kg4.8kg6.9kg
    Gross Weight2.4kg3.0kg4.0kg5.2kg7.6kg
    Packing Size(mm)440×195×220545×230×115665×300×140765×300×140905×355×150


    It is consist of a die-cast aluminum body and toughed glass cover, making it work well in harsh outdoor environments. The highest lumens output also will save much energy. This series includes 50W 100W 150W 200W 250Watt, that can meet the needs of most outdoor street lighting projects.

    Materials and Finished

    • Heat sink (housing): Die-cast aluminum housing, Grey/Black powder coated.
    • Lens/diffuser: Toughed glass, Anti-UV. High light transmittance reaches more than 90%, strong sealing performance.
    • With wide and narrow light distribution available.
    • Using high-brightness Bridgelux LED COB Chips OR Integrated chips with Philips SMD3030, highest lumens output, lowest light decline, longest service life.
    • Isolated led driver with Overvoltage protection, anti-surge
    • Stainless steel screws
    • 0.75²*3 input cable, High and low-temperature resistance, good insulation performance

    Electrical & Optical

    • Working voltage:100-277VAC 50/60Hz or 220-240VAC 50/60Hz.
    • Power Factor (PF):>0.9
    • THD:<15%
    • CRI:>80
    • SDCM:<5
    • Efficiency:>88%
    • Surge protection:6KV-20KV
    • Working temperature:-30℃/+55℃
    • CE RoHS Certified
    • Warranty:2/3/5 Years on demands.

    Additional Options

    • Photocell (Dusk to dawn)/Time control
    • Dimming (PWM/0-10V/DALI Dimmable)
    • Low voltage input voltage DC12V/DC24V/DC36V/DC48W
