Latest design Led Street Light Fixtures 80W COB Lamp grey color for
Major roads
Quick Detail:
Name | 80W Cob Led Steet light | Application | Use for Street |
Color | Grey or custom color | Feature | New Design |
Lamp Luminous Flux(lm) | 7360 | Certificate | TUV/UL /CE/ROHS |
Description:

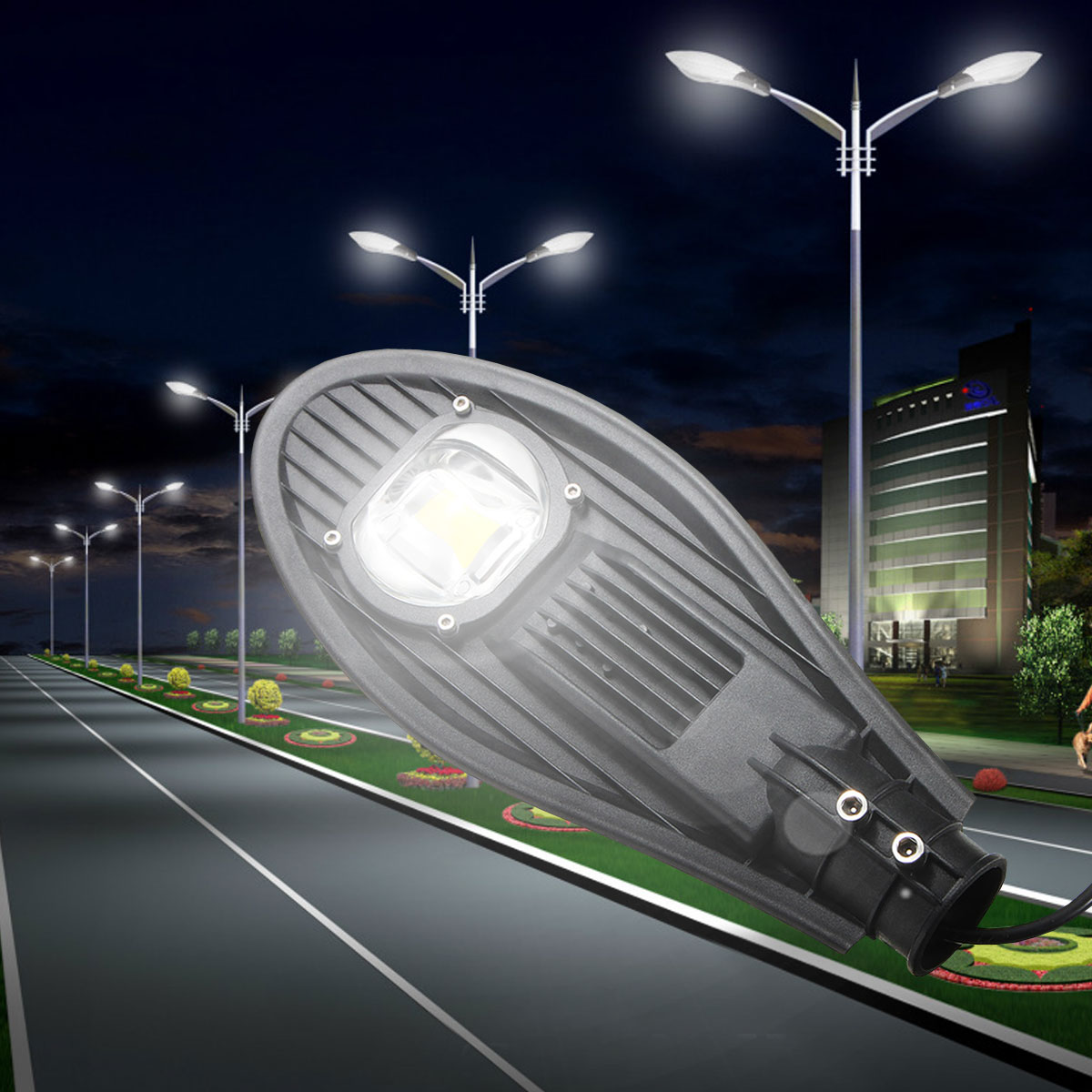

New Patent 80W LED streetlight made of High quality Die Casting
Aluminum housing +Bridgelux LED +UL LED Driver
1. The latest version of high power COB Street Light
Housing,User-friendly mechanical designing,easy to assemble the
led,potic lense and led power supply.
2. State-of-art designing with completed die-casting body as heat
sink offer the maximum heat management system,which can hold
maximum 4pc of 20W Bridgelus COB led.
3. Patented anti-glare optic lense enable this street light give an
maximum 130 degree and 140 degree light spread,with an asymmetrical
polar curve.
4. IP65 protection grade.
5.The Led power supply is designed to installed with two U
brackets,so any brand of led power supply can be easily installed.
Applications:
Motorways,Major roads,minor roads,roundabouts,crossing and
industrial areas.
Product Specifications
| Code | ZHSL-08-30 | ZHSL-08-50 | ZHSL-08-80 | ZHSL-08-120 | ZHSL-08-180 |
| Power | 30W | 50W | 80W | 120W | 180W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000/4000/6500K | 3000/4000/6500K |
| Efficiency | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W | ＞120LM/W |
| Voltage | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz | AC90-305V 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| CRI(Ra) | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 | Ra≥70 |
| Ambient Temperature | -20-50℃ | -20-50℃ | -20-50℃ | -20-50℃ | -20-50℃ |
| Ambient Humidity | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| Lifetime(hrs) | 50000hrs | 50000hrs | 50000hrs | 50000hrs | 50000hrs |
| IP Rate | IP66 | IP66 | IP66 | IP66 | IP65 |
| Installation Pipe Diameter | Φ40mm | Φ60mm | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-7m | 4-7m | 6-8m | 10-12m | 10-14m |
| Net Weight | 1.8kg | 1.8kg | 2.8kg | 4.4kg | 6.2kg |
| Gross Weight | 2.1kg | 2.1kg | 3.3kg | 5.2kg | 7.0kg |
| Packing Size(mm) | 445*200*205/2PCS | 545*230*120 | 665*300*145 | 765*300*145 | 920*355*150 |
Trading Conditions
1. Payment term: 30% deposit by T/T and 70% before delivery or
against Copy of BL.
2. Delivery time: 25 days
3. Samples time: 7 days.
4. Shipping terms: FOB Ningbo.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by
sea water?
Metal has high corrosion resistance.Besides, we do best on light
surface treatment,
electrostatic spraying and electrophoresis can effectively protect
our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better
via samples, we look on the long term and win-win cooperation.
Q4. We now have outdoor projects need to do the lighting design,can
you help us?
Sure we can, we are the leader of outdoor high power LED light
supplier, our design teams can provide you the best solution.
And if you have the tech to make design yourself , we can provide
the IES files for you.
Q5.I have a street/high way project,what's your suggestion?
Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
